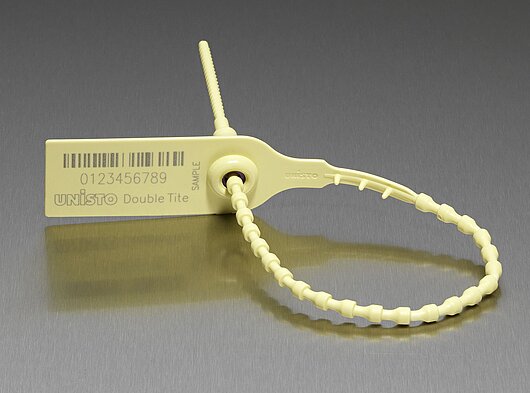

Unisto Double Tite

Pull-tight Security Seal to seal Bags, Sacks and Roll Cages in industries such as Post, Courier Services, Retail and Cash-in-Transit. Due to its robust ribbon design Unisto Double Tite avoids accidental breakage. Ribbon diameter 3.6 mm. The special designed Tamper Evident locking mechanism makes it nearly impossible to manipulate the seal without showing any trace. Numbering and bar-coding for efficient data capture and streamlined logistical processes. Available with different Tag sizes and a variety of plastic colours allows individual customisation.

Features of this security seal

Type of Seal
Adjustable Length Seals
Application
Bags, Roll cagges
  • The ultimate double-locking seal with two separate spring inserts which render any post-sealing tampering impossible
  • Spring inserts moulded from engineering plastic and capable to withstand high temperature
  • Spikes on the ribbon for secure fastening to neck of bag
  • Customer name/logo for clear identification: lasermarking into plastic, suited for rough handling enviroment, tamper-proof
  • Optional side tear-off facility
  • Mats of 10 seals allows sequential distribution

Minimum size

Technical Data Version Polyamide (PA)

Materials

Seal: polyamide (PA)

Locking spring: polyoxymethylene (POM)

Tensile strength (loop)
Approx. 265N (27kg), for NTO, approx. 206 N (21 kg) for STO
Numbering
Up to 7 digits
Barcoding

Interleaved 2/5 or Barcode 128

Others on request

Customer name/logo
Foil printed
Plastic colours (foil printed)
Red, Blue, Yellow, White & Green
Plastic colour (laser)
blue 290U, yellow 100U, green 3375U, white, pink 190U
Packing size
box230mm385 x 240 x 280mm4.0 kg
260mm385 x 240 x 280mm
335mm480 x 240 x 260mm
carton230mm1220 x 398 x 300mm21.2 kg
260mm1220 x 398 x 300mm
All Versions: STO = with tear-off facility NTO = without tear-off facility
Packing
Mats of 10pcs, box of 1000 seals, carton of 5000 seals
Storage
Seals should be stored in original box away from direct sunlight and chemical fumes. Store at 22°C/50% RH. Typical shelf life of seals made of PP and PA are approx. 18 months from date of manufacture. Nevertheless please do not order more than an annual quantity.

Technical Data Version Polypropylene (PP)

Materials

Seal: polypropylene (PP)

Locking spring: polyoxymethylene (POM)

Tensile strength (loop)
Approx. 186N (19kg) NTO, 177N (18kg) TO
Numbering
Up to 7 digits
Barcoding

Interleaved 2/5 or Barcode 128

Others on request

Customer name/logo
Foil printed, directly laser marked
Plastic colours (foil printed)
Red, Blue, Yellow, White & Green
Plastic colours (laser)
Pink, Light Blue, Light Yellow, Light Green & White
Packing
Mats of 10pcs, box of 1000 seals, carton of 5000 seals
Packing size
PP
box230mm385 x 240 x 280mm3.2kg
260mm385 x 240 x 280mm4.2kg
335mm480 x 240 x 260mm5.2kg
carton230mm1220 x 398 x 300mm17.7kg
260mm1220 x 398 x 300mm22.3kg


How to close

How to open
