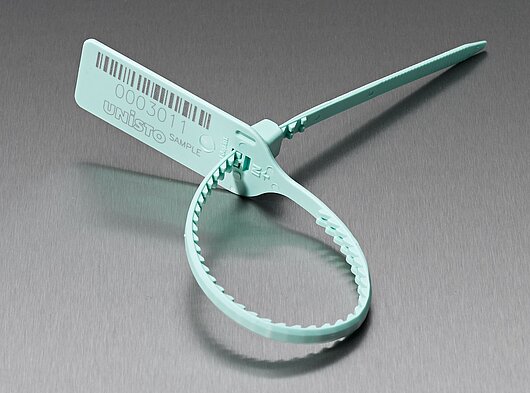

Unisto Axis Mini

Special designed one piece moulded Pull-Tight Security Seal used for securely sealing of bags in the Post, Courier Service and Banks/Cash in Transit sectors. Unique design of locking mechanism firmly secure seal in position to eliminate pseudo sealing. Groove on ribbon prevents reverse insertion ensure no foul-play. Strong strap construction of withstands rough handling in the logistical process. Optional bar-coding for efficient data capture. Available in a range of colours. Ideal and ease of recycling with only a single plastic component.

Unisto Axis Mini - Security Seals
Unisto Axis Mini - Security Seals
Unisto Axis Mini - Security Seals
Unisto Axis Mini - Security Seals

Features of this security seal

Type of Seal
Adjustable Seals
Application
Bags
  • Unique designed locking mechanism firmly secure seal in position to eliminate pullback and pseudo sealing.
  • Groove on ribbon to prevent reverse sealing.
  • Spike and spikeless for wider application range.
  • Tear-off facility for extra convenience to remove seal.
  • One-piece moulded seal makes recycling effort easy.

Dimension Drawing

Specification

Material
Body: Polypropylene
Tensile strength (loop)
Approx. 196N (20kg) for NTO, Approx. 177N (18 kg) for STO
Numbering
up to max. 7 digits
Barcoding
barcode 128, interleaved 2/5, others on request
Logo
laser marked
Plastic colour (foil)
Red, Blue, Yellow, White & Green
Plastic colour (laser)
Pink, Light Blue, Light Yellow, Light Green & White
Packing
Mats of 10 pcs, box of 1'000 seals, carton of 5'000 seals
Packing size
150mm405 x 210 x 200mm
220mm320 x 320 x 215mm3.3kg
300mm400 x 400 x 175mm3.6kg
carton
150mm1100  x 415 x 210mm
220mm1100  x 415 x 210 mm

Storage
Seals should be stored in original box away from direct sunlight and chemical fumes. Store at 22°C/50% RH. Typical shelf life of seals made of PP and PA are approx. 18 months from date of manufacture. Nevertheless please do not order more than an annual quantity.

How to close

How to open
